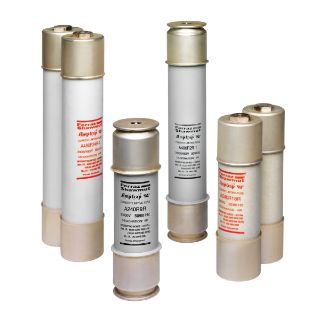

Actual Product May Vary From Image

A480R6R-1 FER

Name: A480R6R-1 FER
Brand: Mersen
SKU: A480R6R-1 FER
Price: 1,414.06 USD
Availability: OutOfStock

Mersen AMP-TRAP® A480R6R-1 1-Barrel Back Up Current-Limiting Medium Voltage Motor Protection Fuse, 170 A, 4800 VAC, 65 kA Interrupt, Class: R

Manufacturer: Mersen

Manufacturer part number: A480R6R-1

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,414.06

Qty:

Product Details

Brand Name

Mersen

Type

1-Barrel Back Up Current-Limiting Medium Voltage

Alternate Supplier #

Grainger - 15D753

Description

MERSEN R-rated fuses are current limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-rated fuses are back up fuses that have a minimum interrupting rating and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-rated fuse size. These fuses come with a 3 in (size D) or 4 in (size E) diameter barrels with ferrules and are mounted in spring reinforced clips.

Mersen AMP-TRAP® Motor Protection Fuse, 1-Barrel Back Up Current-Limiting Medium Voltage, Series: A480R, Indicating, 170 A, 4800 VAC, 65 kA Interrupt, Class: R, Ferrule Terminal, Clip Mounting, Epoxy, 3 in Dia x 15.97 in L Body

Application

For short circuit protection of medium voltage motors and motor controllers

Standards

RoHS Compliant | UL 9F60 File No. E93367 | UL Listed File No. E191980

Features

The AMP-TRAP® R-rated fuses are UL recognized
Ferrule mounting for standard clips and interchangeability with other brands of fuses
Current limiting for superior equipment protection
Metal embossed catalog number and manufacturing date for lasting identification
Hook eye for non load-break isolation by hook stick
On all other 3 in barrel if a hook eye is required, use the operating eye 9F61AAW612
Blown fuse indicator to give positive identification of open fuse
Amp-Trap® 3 in barrel 2 lb tripped force - 1/2 in
Silver plated copper contact
12-1/2 in clip centers
6R size

Specifications

Amperage Rating:	170 A
Body Size:	3 in Dia x 15.97 in L
Class:	R
Country of Origin:	MX
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	65 kA
Material:	Epoxy
Mounting Type:	Clip
Series:	A480R
Terminal Type:	Ferrule
Voltage Rating:	4800 VAC
