Actual Product May Vary From Image

A49 GAT

Name: A49 GAT
Brand: Gates
SKU: A49 GAT
Price: 13.30 USD
Availability: InStock

Hi-Power™ II

Manufacturer: Gates

Manufacturer part number: A49

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
34	6	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$13.30

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

90022049

Description

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Features

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear. Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads. Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments. All sizes meet Gates V80® system matching tolerances. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:	38
Belt Back Side:	Smooth
Belt Inside:	Smooth
Belt/Slab:	Belt
Color:	Black
Construcao:	Banded
Cord Material:	Polyester
Country of Origin:	MX
Effective Length (in):	50.92
Effective Length (mm):	1293
GC Base Product:	Hi-Power® II Belts - A Section
Harmonized Tariff Code:	4010.32.3000
Material:	SBR
Max Temp (°C):	+60
Max Temp (F):	+140
Min Temp (°C):	-30
Min Temp (F):	-22
Number of Ribs/Strands:	1
OC (in):	51.22
OC (mm):	1301
Proposition 65:	NO
Secao:	A
Sided:	Single Sided
Static Conductive:	Yes
Thickness (in):	0.344
Thickness (mm):	9
Top Width (in):	0.534
Top Width (mm):	14
Unitset (V80):	Yes

Customers who bought this item also bought

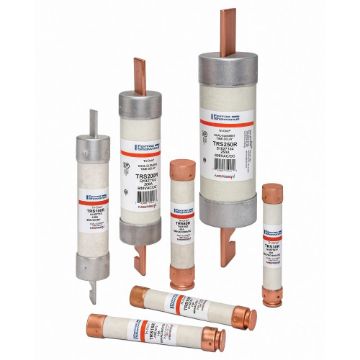

AJT50 FER
