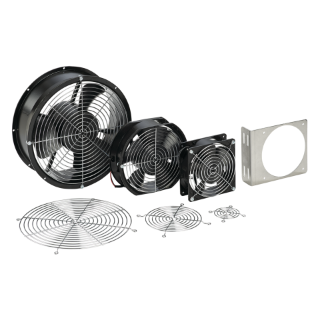

Picture of A4AXFN24 HOF
Actual Product May Vary From Image

A4AXFN24 HOF

4 in Axil Fan 24 VDC
Manufacturer: nVent HOFFMAN
Manufacturer part number: A4AXFN24
Availability: Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$185.00

Product Details

Brand Name

nVent HOFFMAN

Type

Fans and Filter Fans

Description

Compact Axial Fan 4-inch Lead Wires, 24VDC 118CFM, Black, Steel

Application

Controls and Drives; Power Distribution

Specifications

Airflow (Imperial):118 ft³/min
Airflow (Metric):200 m³/h
Amperage Rating:.35 A
Blade Size:4.69-inch diameter
Color:Jet Black
Color Code:RAL 9005
Country of Origin:CN
Depth (Imperial):1.74 in
Depth (Metric):44 mm
Fan Diameter (Imperial):4.69 in
Fan Speed:3200 RPM
Finish:Powder Coat
Flow Rate:118 CFM max
Height (Imperial):4.62 in
Height (Metric):117 mm
Material:Mild Steel
Max Current:0.35 A
Motor Type:AC Motor
Nominal Voltage:24 V
Size:24vdc in
Sound Pressure Level:46.5 dBA
Voltage DC:24-24 V
Voltage Rating:24 VDC
Weight (Imperial):0.9 lb
Width (Imperial):4.62 in
Width (Metric):117 mm

Resources

Installation
