A50QS80-4 FER

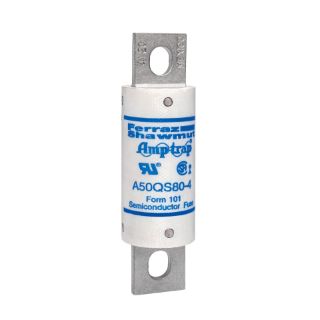

Mersen AMP-TRAP® A50QS80-4 Semiconductor Fuse, 80 A, 500 VAC/VDC, 200/87 kA Interrupt, Cylindrical Body
Manufacturer: Mersen
Manufacturer part number: A50QS80-4
Availability: Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$55.42

Product Details

Brand Name

Mersen

Alternate Supplier #

Grainger - 6XPH9

Description

A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today's best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS.
Mersen AMP-TRAP® Semiconductor Fuse, Series: A50QS, Non-Indicating, Non-Rejection, 80 A, 500 VAC/VDC, 200/87 kA Interrupt, Blade Terminal, Bolt Mounting, Cylindrical Body, Fiber, 1 in Dia x 3.63 in L Body

Application

For protection of 500 V or less motor drives, UPS and inverters

Standards

RoHS Compliant | UL 60314 | UL Guide No. JFHR2 | UL 198L Parameters (70-1200A) | CSA LR12636

Features

  • Lowest I2T for greatest protection of semiconductor circuits
  • Low watts loss for cooler operation
  • Superior cycling ability gives an equipment design advantage
  • State-of-the-art protection for 500 volt equipment
  • Ultra compact sizes allow down-sizing of existing equipment
  • Superior cycling ability
  • North American round style
  • Tin-plated brass, tin-plated copper and silver-plated copper contact

Specifications

Amperage Rating:80 A
Body Size:1 in Dia x 3.63 in L
Body Type:Cylindrical
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200/87 kA
Material:Fiber
Mounting Type:Bolt
Rejection/Non-Rejection:Non-Rejection
Series:A50QS
Terminal Type:Blade
Voltage Rating:500 VAC/VDC
