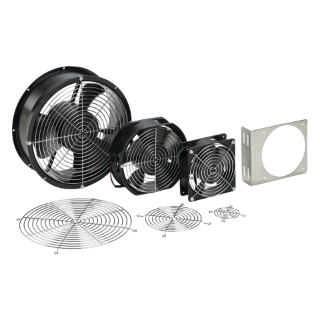

Picture of A6AXFN24 HOF
Actual Product May Vary From Image

A6AXFN24 HOF

6 in Axil Fan 24 VDC
Manufacturer: nVent HOFFMAN
Manufacturer part number: A6AXFN24
Availability: Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$394.00

Product Details

Brand Name

nVent HOFFMAN

Type

Fans and Filter Fans

Description

Compact Axial Fan 6-inch Lead Wires, 24VDC 280CFM, Black, Steel

Application

Controls and Drives; Power Distribution

Specifications

Airflow (Imperial):280 ft³/min
Airflow (Metric):476 m³/h
Amperage Rating:.88 A
Blade Size:6.77-inch diameter
Color:Jet Black
Color Code:RAL 9005
Country of Origin:CN
Depth (Imperial):2.25 in
Depth (Metric):57 mm
Fan Diameter (Imperial):6.77 in
Fan Speed:3200 RPM
Finish:Powder Coat
Flow Rate:280 CFM max
Height (Imperial):5.88 in
Height (Metric):149 mm
Material:Mild Steel
Max Current:0.88 A
Motor Type:AC Motor
Nominal Voltage:24 V
Size:24vdc in
Sound Pressure Level:46.5 dBA
Voltage DC:24-24 V
Voltage Rating:24 VDC
Weight (Imperial):2 lb
Width (Imperial):5.88 in
Width (Metric):149 mm
