A6K35R FER

Name: A6K35R FER
Brand: Mersen
SKU: A6K35R FER
Price: 117.74 USD
Availability: OutOfStock

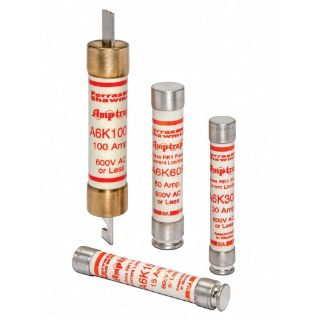

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

A6K35R

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

$117.74 / EA

Description

Brand Name

Mersen

Type

Current Limiting Fast Acting Low Voltage North American Style

Description

Current limiting AMP-TRAP® A6K-R fuses provide excellent protection where high available short circuit currents exist. These fast acting fuses are particularly good for branch/feeder circuits and back up protection.

Mersen AMP-TRAP® Power Fuse, Current Limiting Fast Acting Low Voltage North American Style, Series: A6K-R, Rejection, 35 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: RK1, Ferrule Terminal, Clip Mount, Cylindrical Body Type, Polyester, 1-1/16 in Dia x 5-1/2 in L Body Size

Application

Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads and Lighting Circuits

Standards

UL 248-12 Guide JDDZ File No. E2137 | CSA C22.2 File No. 248.12, Class 1422-02 File No. 012636_0_000 | DC Listed

Features

Rejection style design prevents replacement by other fuse classes
Fiberglass body provides dimensional stability in harsh industrial environments
Easy-to-read imprint label for quick recognition and replacement
High degree of current limitation for low peak let-thru current
200 kA at 600 VAC, 20 kA at 300 VDC interrupt rating

Specifications

Amperage Rating:	35 A
Body Size:	1-1/16 in Dia x 5-1/2 in L
Body Type:	Cylindrical
Class:	RK1
Country of Origin:	MX
Interrupt Rating:	20/200 kA
Material:	Polyester
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	A6K-R
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
