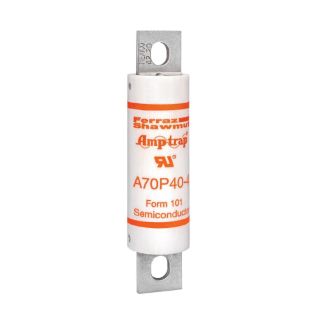

A70P40-4 FER

Name: A70P40-4 FER
Brand: Mersen
SKU: A70P40-4 FER
Price: 125.14 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

A70P40-4

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 15 days

Estimated dates are contingent upon manufacturer stock.

$125.14 / EA

Description

Brand Name

Mersen

Type

Current Limiting High Speed

Description

A70P Amp-Trap® Form 101 semiconductor protection fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.

Mersen AMP-TRAP® Semiconductor Fuse, Current Limiting High Speed, Series: A70P, Non-Indicating, Non-Rejection, 40 A, 700 VAC, 650 VDC, 100 kA Interrupt, 10 ms Response, Bolted Terminal, Bolt Mounting, Cylindrical Body, Fiber, 0.56 in Dia x 2.88 in L Body

Application

For protection of 700 V or less DC drives, UPS, inverters and reduced voltage starters

Standards

RoHS Compliant | UL File No. E60314 | UL Guide No.JFHR2 | UL 198L Parameters (10-800A)

Features

Low I2T minimizes damage to protected components on short circuit
Controlled arc voltage reduces stress to circuit components during fuse clearing
Choice of mounting types helps in equipment design
Very fast acting
North American round style
Tin-plated copper, tin-plated brass and silver-plated copper contact

Specifications

Amperage Rating:	40 A
Body Size:	0.56 in Dia x 2.88 in L
Body Type:	Cylindrical
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Material:	Fiber
Mounting Type:	Bolt
Rejection/Non-Rejection:	Non-Rejection
Response Time:	10 ms
Series:	A70P
Terminal Type:	Bolted
Voltage Rating:	700 VAC, 650 VDC
