A81 GAT

Name: A81 GAT
Brand: Gates Corporation
SKU: A81 GAT
Price: 22.62 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

A81

CBT Inventory

Vendor Inventory

Availability:

2 in stock

Estimated dates are contingent upon manufacturer stock.

$22.62 / EA

Description

Brand Name

Gates®

Type

Banded Heavy Duty

Description

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Gates® Hi-Power® II V-Belt, Banded Heavy Duty, Series: 9002, A Section, 1/2 in Top Width, 83 in Outside Length, 5/16 in Thickness, 1 Rib, 4.138 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial applications, including V-flat drives

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

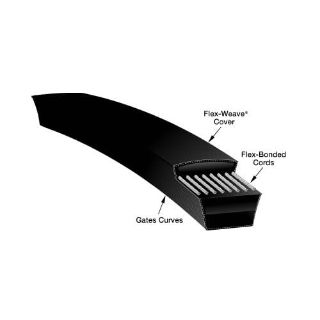

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
Featuring a composite, multi-purpose construction, these belts resist oil and heat, ozone, sunlight, weather and aging

Specifications

Country of Origin:	MX
Material:	EPDM
Minimum Pulley Diameter:	4.138 in
Number of Ribs:	1
Outside Length:	83 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	A
Series:	9002
Thickness:	5/16 in
Top Width:	1/2 in
