A90XM4024FTC HOF

Disconnect Encl. 90.12x39.50x2
Manufacturer: nVent HOFFMAN
Manufacturer part number: A90XM4024FTC
Availability: Expected Leadtime 8 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$6,863.00

Product Details

Brand Name

nVent HOFFMAN

Type

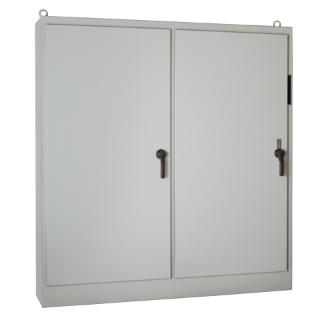

Mild Steel Freestanding Industrial Disconnect Enclosures

Description

Heavy-Duty Disconnect White Inside Type 12, 90.12x40.25x24.12, Gray, Steel

Application

Controls and Drives; Arc Flash Safety; Power Distribution

Specifications

Conductive Panel:A90PM40G
Country of Origin:MX
Depth:24.12
Exterior Color:Gray
Exterior Color Code:ANSI 61
Finish:Powder Coat
Height:90.12
Interior Color:White
IP Rating:IP55
Material:Mild Steel
Modification Services:Yes
NEMA Rating:12 Indoor, dust-resistant
Painted Panel:A90PM40
Panel Size (Imperial):78.00 x 33.75 in
Panel Size (Metric):1981 x 857 mm
Protection Rating:NEMA Type 12
Size:90.12x40.25x24.12 in
Thickness (Imperial):11 ga
Thickness (Metric):3.04 mm
Type Number:Type 12
Weight (Imperial):661 lb
Width:40.25
With or Without Panel:With
