AA51 GAT

Name: AA51 GAT
Brand: Gates Corporation
SKU: AA51 GAT
Price: 38.38 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

AA51

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$38.38 / EA

Description

Brand Name

Gates®

Type

Banded Heavy Duty

Description

This belt is designed with a unique recessed top and bottom to maintain sidewall contact, while remaining flexible for drives that require power transmission from both sides of the belt.

Gates® Hi-Power® II Double V-Belt, Banded Heavy Duty, Series: 9052, AA Section, 1/2 in Top Width, 53 in Outside Length, 13/32 in Thickness, 1 Rib, 4.138 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial serpentine applications requiring rotation reversal in some driven shafts

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

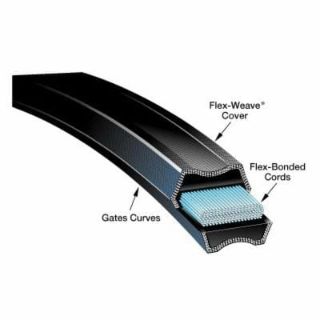

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life

Specifications

Country of Origin:	MX
Material:	EPDM
Minimum Pulley Diameter:	4.138 in
Number of Ribs:	1
Outside Length:	53 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	AA
Series:	9052
Thickness:	13/32 in
Top Width:	1/2 in
