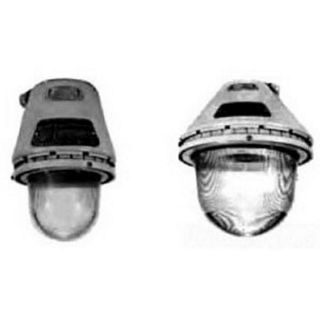

Picture of AAU15N APN
Actual Product May Vary From Image

AAU15N APN

Appleton® UNILETS™ AAU-15N A-51™ Explosionproof Factory Sealed Incandescent Luminaire, (1) Incandescent Lamp, 150 to 300 W Fixture, Epoxy Clad/Powder Coated Housing
Manufacturer: Appleton
Manufacturer part number: AAU-15N
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,070.38

Product Details

Brand Name

Appleton®

Type

Explosionproof Factory Sealed

Description

Appleton® UNILETS™ Incandescent Luminaire, Explosionproof Factory Sealed, Series: A-51™, 150 to 300 W Fixture, Incandescent Lamp, 150 to 300 W Lamp, A23/PS25 Medium Lamp Base, 1 Lamp, Explosionproof/Heat/Impact-Resistant Glass Lens, Threaded Mounting, Copper Free Aluminum Housing Material, Epoxy Clad/Powder Coated Housing Finish

Application

Used in chemical and petrochemical plants and in other heavy process areas where ignitable vapors, dust, moisture and corrosive atmospheres may be present, use in wet locations and threaded metal conduit

Standards

UL 1598 | UL 844 | UL File No. E10444 | CSA C22.2 No. 250 | C22.2 No. 137 | CSA 025428 | Group A and B | Class I, Division 1 and 2, Groups A, B, C, D | Class II, Division 1 and 2, Groups E, F, G | Class III, Group C and D | Class I, Division 1 and 2, Groups C, D | Class II, Division 1 and 2, Groups E, F, G | Class III Certified

Features

  • All A-51™ fixtures are factory-sealed, no external sealing fittings required
  • New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts loosen two screws, rotate and remove for quick wiring
  • Safe, easy servicing or relamping without disconnecting any wiring
  • Wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate exchange with stand-by unit
  • All joints are flame tight
  • Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion
  • New high temperature glass reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood
  • Prismatic configuration on globe interior provides light control while allowing smooth exterior surface for cleaning
  • All fixtures have aluminum inner reflector for increased lumen efficiency
  • Easily mount to globe ring with 3 screws

Specifications

Country of Origin:MX
Fixture Wattage:150 to 300 W
Housing Finish:Epoxy Clad/Powder Coated
Housing Material:Copper Free Aluminum
Lamp Base Type:A23/PS25 Medium
Lamp Type:Incandescent
Lamp Wattage:150 to 300 W
Lens Type:Explosionproof/Heat/Impact-Resistant Glass
Mounting Type:Threaded
Number of Lamps:1
Series:A-51™
