ABC-1/2 BSF

Name: ABC-1/2 BSF
Brand: Bussmann
SKU: ABC-1/2 BSF
Availability: OutOfStock

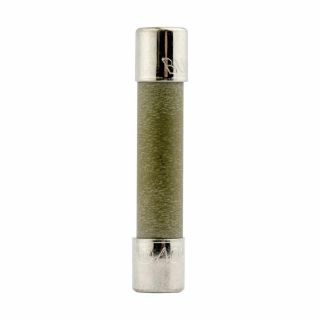

Bussmann ABC-1/2 Electronic Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 1/2 A, 250 VAC, 125 VDC, 35 A, 10 kA Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: ABC-1/2

Availability: Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Fast Acting Fuse, Electronic Small Dimension, Series: ABC, Non-Indicating, 1/2 A, 250 VAC, 125 VDC, 35 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

Features

Ceramic body allows for higher amp/volt rating combinations
35 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200% response time

Specifications

Amperage Rating:	0.5 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	35 A, 10 kA
Material:	Ceramic
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	4 hr, 60 min, 120 s
Series:	ABC
Terminal Type:	Ferrule
Voltage Rating:	250 VAC, 125 VDC
