ABC-15-R BSF

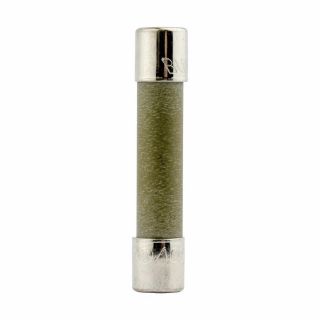

Bussmann ABC-15-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 15 A, 250 VAC, 125 VDC, 750 A, 10 kA Interrupt, Cylindrical Body
Manufacturer: Bussmann
Manufacturer part number: ABC-15-R
Availability: Expected Leadtime 42 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 22
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$3.32

Product Details

Brand Name

Bussmann

Type

Small Dimension

Alternate Supplier #

Grainger - 1BX45

Description

Fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's ABC fast-acting, ceramic body tube 1/4" x 1-1/4" fuses are designed with higher interrupting ratings and voltage ratings to UL 248-14 for overcurrent protection of electronic circuits. This is a RoHS compliant fuse. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 15 A, 250 VAC, 125 VDC, 750 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

RoHS 2002/95/EC | UL 248-14 | Guide JDYX/File No. E19180 | CSA Class 1422-01/1422-30/File No. 53787 | CE Certified

Features

  • Ceramic body allows for higher amp/volt rating combinations
  • 750 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
  • 4 hr minimum at 100%, 60 min maximum at 135%, 120 sec maximum at 200% response time

Specifications

Amperage Rating:15 A
Body Size:1/4 in Dia x 1-1/4 in L
Body Type:Cylindrical
Country of Origin:CN
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:750 A, 10 kA
Material:Ceramic
Mounting Type:Clip/Holder
Rejection/Non-Rejection:Non-Rejection
Response Time:4 hr, 60 min, 120 s
Series:ABC
Terminal Type:Ferrule
Voltage Rating:250 VAC, 125 VDC
