ABMQS-A-Q20 PAN

Name: ABMQS-A-Q20 PAN
Brand: Panduit
SKU: ABMQS-A-Q20 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

ABMQS-A-Q20

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 25

Description

Brand Name

Panduit®

Type

Adhesive Backed Multiple Bridge

Description

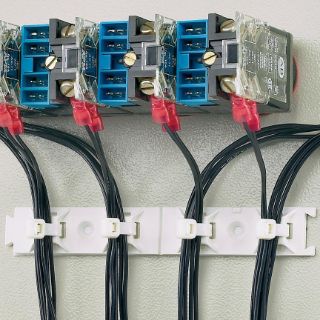

The ABMQ Multiple Bridge Mount provides a quick and dependable method of supporting, routing, and protecting cables while providing maximum design flexibility. Applying one ABMQ Multiple Bridge Mount gives you the ability to route up to four cable bundles quickly with Panduit® Cable Ties. The large adhesive surface area of the ABMQ provides a secure mounting method for cable bundles. Connecting two or more ABMQ Multiple Bridge Mounts provides more cable routing capabilities for complex electrical systems.

Panduit®, ABMQS-A-Q20, Cable Mount, Adhesive Backed Multiple Bridge, Series: ABMQ, 4-Way Tie Entry, Rubber Adhesive/Threaded Mounting, 0.252 in Maximum Tie Width, 5.13 in Base Length, 3/4 in Base Width, ABS, Black

Application

For use with miniature, intermediate, standard cable tie and indoor applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL File No. E136577 | CE Certified

Features

Multiple cable tie bridge on one mount speeds installation of cable bundle by reducing the number of mounts applied
Dovetail connection system provides alignment and a joining method to expand routing capabilities
V-groove allows for easy separation into two mounts with two bridge each for separate application
4-way cable tie bridge allows cable bundle to be secured perpendicular to the mount for even spacing or inline to secure a bundle in multiple places
Large adhesive surface area provides long term reliability and keeps product in place despite heavy load or high stress
It makes part orientation fast and easy
It is used with miniature, intermediate and standard cable ties

Specifications

Base Length:	5.13 in
Base Width:	3/4 in
Color:	Black
Country of Origin:	US
Material:	ABS
Maximum Tie Width:	0.252 in
Mounting Type:	Rubber Adhesive/Threaded
Series:	ABMQ
Tie Entry:	4-Way
