ABMQS-S6-C0 PAN

Name: ABMQS-S6-C0 PAN
Brand: Panduit
SKU: ABMQS-S6-C0 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

ABMQS-S6-C0

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Description

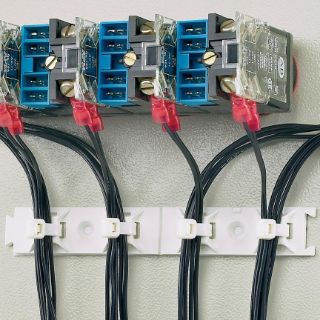

The ABMQ Multiple Bridge Mount provides a quick and dependable method of supporting, routing, and protecting cables while providing maximum design flexibility. Applying one ABMQ Multiple Bridge Mount gives you the ability to route up to four cable bundles quickly with PANDUIT Cable Ties. The large adhesive surface area of the ABMQ provides a secure mounting method for cable bundles. Connecting two or more ABMQ Multiple Bridge Mounts provides more cable routing capabilities for complex electrical systems.

Panduit® Cable Tie Mount, 4-Way Tie Entry, Threaded Mounting, 0.19 in Maximum Tie Width, 5.13 in Base Length, 3/4 in Base Width, ABS, Black

Application

High Temperature and Outdoor Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL File No. E136577

Features

-40 to 185 deg F operating temperature
Dovetail connection system provides alignment and a joining method to expand routing capabilities
V-groove allows for easy separation into two mounts with two bridges each for separate applications
4-way cable tie bridges allow cable bundles to be secured perpendicular to the mount for even spacing or inline to secure a bundle in multiple places
Large adhesive surface area provides long term reliability and keeps product in-place despite heavy load or high stress
Multiple cable tie bridges on one mount speeds installation of cable bundles by reducing the number of mounts applied
2-1/2 in hole spacing
0.25 in H
Weather-resistant
#6 screw hole
For use with miniature, intermediate and standard cable ties

Specifications

Base Length:	5.13 in
Base Width:	3/4 in
Color:	Black
Country of Origin:	US
Material:	ABS
Maximum Tie Width:	0.19 in
Mounting Type:	Threaded
Tie Entry:	4-Way
