ACAUX4000 WOO

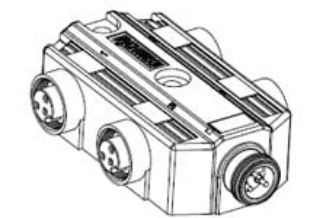

Picture of ACAUX4000 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
ACAUX4000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$206.56 / EA

Description

Brand Name

Brad®

Type

4-Port

Description

Brad® Mini-Change® Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low-resistance connection, the patented Quad Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.
Brad® Mini-Change® Distribution Junction Box, 4-Port, Series: 130060, 600 VAC/VDC, 13 A, 3 Poles, IP67, Side Mount, NEMA 6, PBT, Yellow, 4.84 in Height, 3.28 in Width, 1.37 in D

Features

  • Patented Quad-Beam™ socket contact with stainless steel sleeve
  • Maintains consistent pressure on the male pin to ensure optimum conductivity
  • Molded key indicator
  • Easier alignment and mating of connector
  • Prevents the entry of water during temporary submersion at a limited depth
  • Gold over nickel plated contacts
  • High performance, long lasting plating that maintains low resistance through many mate/unmate cycles
  • Integral strain relief
  • Provides 100 lb minimum cable strain relief and radiates stress in side loaded conditions
  • Single input/output per port

Specifications

Amperage Rating:13 A
Color:Yellow
Country of Origin:MX
Depth:1.37 in
Enclosure Type:IP67
Height:4.84 in
Material:PBT
Mounting Type:Side
NEMA Rating:NEMA 6
Number of Poles:3
Series:130060
Voltage Rating:600 VAC/VDC
Width:3.28 in
