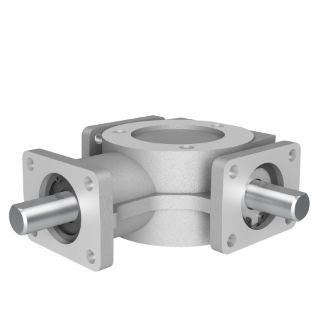

AD4 1/1 C,F SP HUB

Name: AD4 1/1 C,F SP HUB
Brand: Hub City
SKU: AD4 1/1 C,F SP HUB
Price: 1,241.44 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-05307

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,241.44 / EA

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style C F

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style C F, Series: AD4, 1:1 Gear Ratio, 0.913 hp, Shaft Input, Shaft Output, 0.3745 in Dia x 0.59375 in L Input, 0.3745 in Dia Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 32.9 in-lb, 2-3/4 in Centre Distance, 1/32 in D Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Surface Mount, Cast Aluminum, 1.255 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Factory lubricated
Corrosion-resistant shafting
Cast aluminum housing Universal mounting (4 surfaces) Factory lubricated Spiral bevel gearing Corrosion resistant shafting

Specifications

Centre Distance:	2-3/4 in
Country of Origin:	US
Dimensions:	1.255 in H
Efficiency:	97.5 %
Gear Ratio:	1:1
Horsepower:	0.913 hp
Input Maximum Speed:	1750 rpm
Input Size:	0.3745 in Dia x 0.59375 in L
Input Type:	Shaft
Keyway Size:	1/32 in D
Lubrication Type:	Conventional Oil
Material:	Cast Aluminum
Mounting Type:	Surface
Output Maximum Speed:	1750 rpm
Output Size:	0.3745 in Dia
Output Type:	Shaft
Series:	AD4
Torque Rating:	32.9 in-lb
