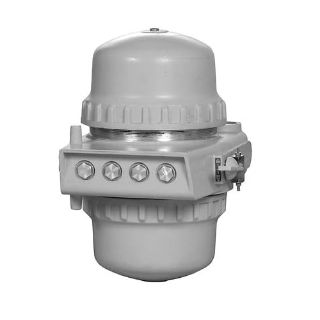

AEKT12215C APN

Name: AEKT12215C APN
Brand: Appleton
SKU: AEKT12215C APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

AEKT12215C

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Dust-Ignitionproof Explosionproof Threaded Enclosure Watertight

Description

Appleton® explosionproof, dust- ignitionproof, watertight AE Series threaded circuit breakers and enclosures provide protection against overloading and/or short circuits on power circuit feeder or branch circuits. They also provide disconnect means and thermal time delay overload protection. These 2 and 3-Pole, non-interchangeable trip, threaded enclosure type circuit breakers are designed for use in areas where hazardous materials are handled or stored.

Appleton® Circuit Breaker, Dust-Ignitionproof Explosionproof Threaded Enclosure Watertight, Series: AE Series, 240 VAC, 15 A, 10 kA Interrupt, Non-Interchangeable Trip, 2 Pole, Handle/Shaft Actuator, Lug, NEMA 4X/7CD/9EFG, 22.5 in H x 10.63 in W x 15.25 in D, Copper-Free Aluminum, Gray, Epoxy Powder Coated

Application

For overload and short circuit protection on feeder or branch circuits and hazardous locations

Standards

UL 877 | UL 1203 | UL File No. E84577 | NEC Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class III

Features

Cast on slotted mounting feet
Ground lug package and installation instructions for termination of ground wire enclosed
External operating handle with slots for limiting handle travel
Breaker operator can be locked in the On or Off position
Standard outlets for line and load wiring
Wide range of drilled and tapped outlets, plugged 1/2 in outlets top and bottom for breather and drain
Breakers are mounted on a painted removable pan
Enclosures are designed to accept GE, Square D and Cutler-Hammer B circuit breakers
Readily accessible circuit breakers outside the center housing
Acme screw type square threads designed to prevent seizing
Bell threads are located inside the housing, protects against damage or contamits

Specifications

Actuator Type:	Handle/Shaft
Amperage Rating:	15 A
Color:	Gray
Connection Type:	Lug
Country of Origin:	US
Dimensions:	22.5 in H x 10.63 in W x 15.25 in D
Enclosure Type:	NEMA 4X/7CD/9EFG
Finish:	Epoxy Powder Coated
Interrupt Rating:	10 kA
Material:	Copper-Free Aluminum
Number of Poles:	2
Series:	AE Series
Trip Type:	Non-Interchangeable
Voltage Rating:	240 VAC
