AEP10253 APN

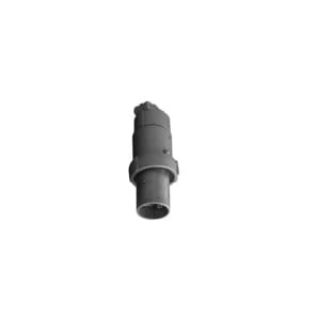

Picture of AEP10253 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
AEP10253
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

Grounding Style 1 Weatherproof

Description

AE Series Pin and Sleeve Plugs, Connectors and Receptacles are available in 30, 60 and 100 A designs. They provide safe and reliable power for fixed and portable electrical equipment in severe weather, corrosive atmospheres and rugged work environments. Electrical continuity is maximized through constant pressure along the entire contact surface, while durable seals, gaskets and screw caps keep moisture and dust away from contacts and internal components.
Appleton® Clamping Ring Plug, Grounding Style 1 Weatherproof, Series: AE Series, 250/600 VAC/VDC, 100 A, 2 Pole, 2 Wires, Pressure Wire Terminal, Copper Free Aluminum, 8.94 in L x 4.25 in W Dimensions

Application

AE1021, AE1027 Receptacles and APR10253 Connector Body, Welders, Generators, Compressors, Pumps, Shipping Docks, Ports and Ship to Shore Applications

Standards

UL 1682 | UL 1689

Features

  • Shell grounding style 1
  • Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs
  • Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened
  • Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking
  • Floating type plug contacts self align to receptacle contacts
  • Natural finish fiber glass reinforced phenolic insulation blocks
  • Ring threads onto screw cap receptacle to provide raintight assembly when properly tightened
  • Cable clamps prevent strain on cables and allow easy cable replacement
  • Mounting box gasket protects receptacle from moisture

Specifications

Amperage Rating:100 A
Country of Origin:MX
Dimensions:8.94 in L x 4.25 in W
Material:Copper Free Aluminum
Number of Poles:2
Number of Wires:2
Series:AE Series
Terminal Type:Pressure Wire
Voltage Rating:250/600 VAC/VDC
