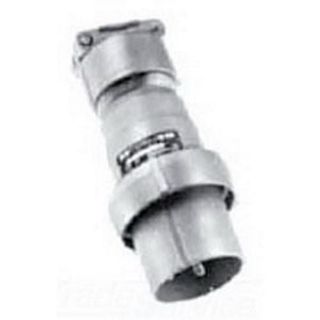

Actual Product May Vary From Image

AEP10453 APN

Name: AEP10453 APN
Brand: Appleton
SKU: AEP10453 APN
Availability: OutOfStock

Appleton® AEP10453 AE Series Grounding Style 1 Weatherproof Clamping Ring Plug, 250/600 VAC/VDC, 100 A, 4 Poles, 4 Wires

Manufacturer: Appleton

Manufacturer part number: AEP10453

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Type

Grounding Style 1 Weatherproof

Description

AE Series Pin and Sleeve Plugs, Connectors and Receptacles are available in 30, 60 and 100 A designs. They provide safe and reliable power for fixed and portable electrical equipment in severe weather, corrosive atmospheres and rugged work environments. Electrical continuity is maximized through constant pressure along the entire contact surface, while durable seals, gaskets and screw caps keep moisture and dust away from contacts and internal components.

Appleton® Clamping Ring Plug, Grounding Style 1 Weatherproof, Series: AE Series, 250/600 VAC/VDC, 100 A, 4 Pole, 4 Wires, Pressure Wire Terminal, Copper Free Aluminum, 8.94 in L x 4.25 in W Dimensions

Application

AE1041, AE1047 Receptacles and APR10453 Connector Body, Welders, Generators, Compressors, Pumps, Shipping Docks, Ports and Ship to Shore Applications

Standards

UL 1682 | UL 1686

Features

Shell grounding style 1
Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs
Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened
Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking
Floating type plug contacts self align to receptacle contacts
Natural finish fiber glass reinforced phenolic insulation blocks
Ring threads onto screw cap receptacle to provide raintight assembly when properly tightened
Cable clamps prevent strain on cables and allow easy cable replacement
Mounting box gasket protects receptacle from moisture

Specifications

Amperage Rating:	100 A
Country of Origin:	MX
Dimensions:	8.94 in L x 4.25 in W
Material:	Copper Free Aluminum
Number of Poles:	4
Number of Wires:	4
Series:	AE Series
Terminal Type:	Pressure Wire
Voltage Rating:	250/600 VAC/VDC
