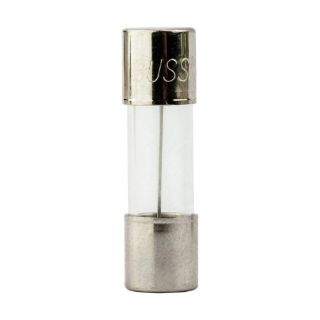

AGX-15 BSF

Name: AGX-15 BSF
Brand: Bussmann
SKU: AGX-15 BSF
Price: 3.02 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

AGX-15

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

$3.02 / EA

Description

Brand Name

Bussmann

Type

Small Dimension

Alternate Supplier #

Grainger - 1DJ54

Description

Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 15 A, 32 VAC, 1 kA Interrupt, 4 hr, 60 min, 5 s, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

Application

Electronic Circuits

Standards

CE Certified | UL 248-14, Guide JDYX2, File No. E19180 Recognized | CSA Class No. 1422-01, File No. 53787

Features

Size rejects insertion of other fuse types
4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200%, 2 min maximum at 200% response time
1 kA at 32 VAC interrupt rating

Specifications

Amperage Rating:	15 A
Body Size:	1/4 in Dia x 1 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	1 kA
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Rejection
Response Time:	4 hr, 60 min, 2 min
Series:	AGX
Terminal Type:	Ferrule
Voltage Rating:	250 VAC, 32 VAC/VDC
