AJT100EI FER

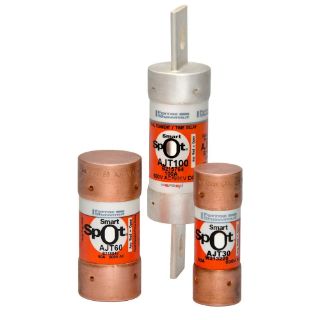

Picture of AJT100EI FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
AJT100EI
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 35 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$252.70 / EA

Description

Brand Name

Mersen

Type

Low Voltage North American Style Time Delay

Description

Amp-Trap® 2000 time delay AJT fuses provide IEC type-2 (no damage) protection to main, feeder and branch-circuits, for all types of loads - yet, they require only half the mounting space needed for 600 V UL class RK fuses. Time delay characteristics handle motor inrush currents without nuisance trips. Its current limiting ability and wide range of ratings provide excellent overcurrent protection for all your applications. An optional mechanical blown fuse indicator and microswitch is available on blade-type (70 to 600 A) fuses for visual and/or remote blown fuse indication.
Mersen AMP-TRAP® 2000 SmartSpot® Power Fuse, Low Voltage North American Style Time Delay, Series: AJT, Indicating, Rejection, 110 A, 600 VAC, 200 kA Interrupt, Class: J, Blade Terminal, Clip Mounting, Cylindrical Body, Fiberglass, 1.08 in Dia x 4.63 in L Body

Application

Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers Applications

Standards

Class 1422-02 File No. 012636_0_000 | CSA C22.2 No. 248.8 | DC Listed | IEC 269-2-1 | RoHS Compliant | UL 248-8 File No. E2137

Features

  • Solid state SmartSpot® indicator
  • Time delay for motor starting and transformer inrush
  • 300 kA interrupting rating, self certified (UL witnessed)
  • Extremely current limiting for low peak let-thru current
  • Most current limiting UL class fuse
  • Small footprint requires less mounting space and allows smaller, more economical fuse blocks
  • Easy 2-to-1 selectivity for prevention of nuisance shutdowns
  • Unique class J dimensions prevent replacement errors
  • High visibility orange label gives instant recognition
  • Metal embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High grade silica filler ensures fast arc quenching
  • 200 kA at 600 VAC, 100 kA at 500 VDC interrupt rating

Specifications

Amperage Rating:110 A
Body Size:1.08 in Dia x 4.63 in L
Body Type:Cylindrical
Class:J
Country of Origin:MX
Indicating/Non-Indicating:Indicating
Interrupt Rating:200 kA
Material:Fiberglass
Mounting Type:Clip
Rejection/Non-Rejection:Rejection
Series:AJT
Terminal Type:Blade
Voltage Rating:600 VAC

Products Specifications

Amperage Rating
100 A
Brand Name
Mersen
Voltage Rating
600 VAC

Customers who bought this item also bought

Picture of AJT70EI FER

AJT70EI FER

MFG: Mersen
MFG#:AJT70EI
Info:Mersen AMP-TRAP® 2000 SmartSpot® AJT70EI Low Voltage North American Style Time Delay Power Fuse, 70 A, 600 VAC, 200 kA Interrupt, J Class, Cylindrical Body
$ -.--

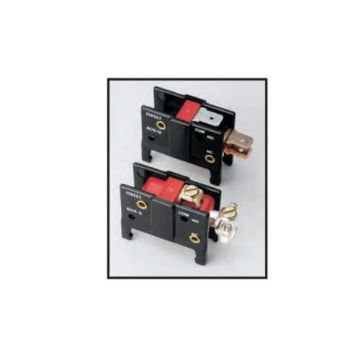

Picture of AOS-Q FER
