AJT5-6/10N FER

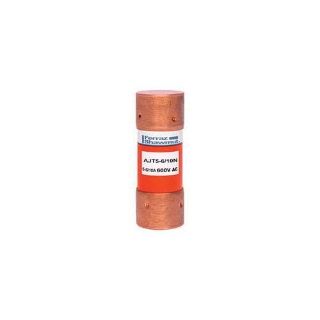

Picture of AJT5-6/10N FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
AJT5-6/10N
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$47.36 / EA

Description

Brand Name

Mersen

Description

Amp Trap 2000® AJT fuses provide non-indication as well as a Smartspot visual open fuse indicator, with advanced material technology the AJT fuse provides IEC type 2 no damage protection to main, feeder, and branch circuits, for all types of loads yet, they require only half the mounting space needed for 600 VAC c lass RK fuses, AJTs time delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current limiting ability.
Mersen, AJT5-6/10N, Time Delay Fuse, Series: AJT, Non-Indicating, Non-Rejection, 5.6 A, 600 VAC/500 VDC, 100 kA at 500 VDC, 200 kA at 600 VAC Interrupt, Class: J, 50/60 Hz Frequency, Ferrule Terminal, Clip Mounting, Dual Element, GMG, Orange, 13/16 in Dia x 2-1/4 in L Body

Application

Motor Circuit, Main, Feeder, Branch Circuit, Lighting, Heating and General Load, Transformer, Control Panel, Circuit Breaker Back Up, Bus Duct and Load Center Applications

Standards

CSA Certified | IEC 60269-2-1 | RoHS Compliant | UL 248-7 File No. E2137

Features

  • Non-indicating or solid state smartspot visual blown fuse indicator
  • Time delay for motor starting and transformer inrush
  • 300 kA interrupting rating self certified, UL witnessed tests
  • Extremely current limiting for low peak let thru current
  • Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
  • Recommended for arc flash energy reduction
  • Small footprint requires less mounting space and allows smaller, more economical fuse blocks
  • Easy 2 to 1 selectivity for prevention of nuisance shutdowns
  • Unique class J dimensions prevent replacement errors
  • High visibility orange label gives instant brand recognition
  • Metal embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh environments
  • High-grade silica filler ensures fast arc quenching

Specifications

Amperage Rating:5.6 A
Body Size:13/16 in Dia x 2-1/4 in L
Class:J
Color:Orange
Country of Origin:MX
Element:Dual
Frequency Rating:50/60 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100 kA at 500 VDC, 200 kA at 600 VAC
Material:GMG
Mounting Type:Clip
Rejection/Non-Rejection:Non-Rejection
Series:AJT
Terminal Type:Ferrule
Voltage Rating:600 VAC/500 VDC

Products Specifications

Amperage Rating
5.6 A
Brand Name
Mersen
Type
Branch-Circuit Protection
Voltage Rating
600 VAC
