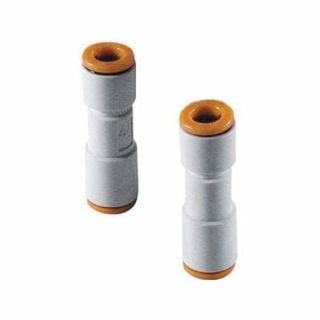

Actual Product May Vary From Image

AKH07-00 SMC

Name: AKH07-00 SMC
Brand: SMC
SKU: AKH07-00 SMC
Price: 11.30 USD
Availability: InStock

SMC® AKH07-00 Straight Check Valve With One-Touch Fitting, -100 KPa to 1 MPa Pressure, Plastic Body

Manufacturer: SMC

Manufacturer part number: AKH07-00

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$11.30

Qty:

Product Details

Brand Name

SMC®

Type

Straight

Description

Series AK/AKH/AKB check valves offer various configurations to provide design solutions based on operating conditions. The series is compact and lightweight with low cracking pressure. The AKH with one-touch fitting, straight type, is easily installed in pipelines, while the male connector type can be mounted directly onto equipment. The bushing type AKB can be used in applications with splashing coolant and spatter.

SMC® Check Valve, Straight, Series: AKH, -100 KPa to 1 MPa Pressure, -5 to 60 deg C, Media: Air, Plastic Body, 12 in Dia x 39 in L Dimensions

Application

For 100 kPa vacuum

Standards

RoHS Compliant

Features

Easily installed in pipe lines
Compact and lightweight

Specifications

Body Material:	Plastic
Dimensions:	12 in Dia x 39 in L
Media:	Air
Pressure Rating:	-100 KPa to 1 MPa
Series:	AKH
Temperature Rating:	-5 to 60 deg C
