AL075 HUB 12MM 4X1.8MM KW LOV

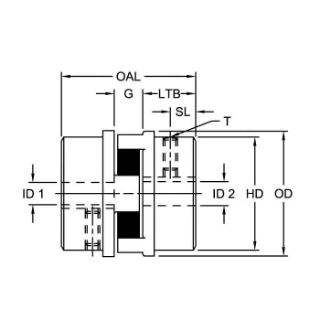

Picture of AL075 HUB 12MM 4X1.8MM KW LOV
Actual Product May Vary From Image

Product Details

Manufacturer:
Lovejoy
Manufacturer part number:
68514464655
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$15.23 / EA

Description

Brand Name

Lovejoy®

Type

Type AL Style 2

Description

Lovejoy® Jaw Coupling Hub, Type AL Style 2, AL075 Coupling, 12 mm Bore, 38.86 mm Diameter Hub, 33.27 mm Hub Length, 4 mm W x 1.8 mm D Keyway, 11000 rpm Maximum, 20.57 mm Length Through Bore, 1/4-20 Screw, Aluminum, Silver

Standards

ECCN EAR99

Features

Interchangeable with all hub sizes standard for the L-line and AL-line products

Specifications

Bore Diameter:12 mm
Country of Origin:US
Coupling Size:AL075
Finish:Silver
Hub Diameter:38.86 mm
Hub Length:33.27 mm
Keyway Size:4 mm W x 1.8 mm D
Length Through Bore:20.57 mm
Material:Aluminum
Maximum Speed:11000 rpm
Screw Size:1/4-20
