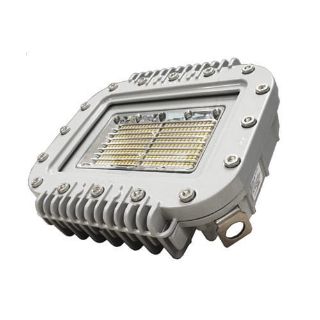

ALF5AN23DBWNGN DLG

Name: ALF5AN23DBWNGN DLG
Brand: Dialight Corporation
SKU: ALF5AN23DBWNGN DLG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Dialight Corporation

Manufacturer part number:

ALF5AN23DBWNGN

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SafeSite®

Type

180 deg Beam

Description

Providing the longest lasting, most widely certified hazardous location area light in the industry, the SafeSite® area light tolerates the harshest conditions and virtually eliminates maintenance to improve site efficiency and safety. Covered by Dialight 5 and 10 years warranties (as applicable), the SafeSite® area light offers superior safety and durability for oil and gas, chemical, mining, offshore, particulate and other volatile environments.

SafeSite® Area Light, 180 deg Beam, 100 to 277 VAC/120 to 250 VDC, 24 W Fixture, LED Lamp, >300000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 80 CRI, Polycarbonate Diffuser Lens, 3001 to 4000 Lumens, SOOW 10 ft Cord, NEMA 4X/IP66/IP67/IP69/IK10 Enclosure, Swivel Bracket Mounting, Copper Free Aluminum Housing Material, Gray Housing Finish, 9.7 in H x 10.7 in W x 11.843 in D Dimensions

Application

Indoor, Outdoor, Industrial and Hazardous Locations

Standards

UL 844 CIass II, Div 1, 2 Class I, Div 2 | CSA C22.2 No. 137- M81 | FCC Title 47 Subpart B Section 15 Class A | IEC 61000-3-2 Class C

Specifications

Average Life:	>300000 hr
Color Rendering Index (CRI):	80
Color Temperature:	4000 K
Cord Type:	SOOW 10 ft
Country of Origin:	MX
Dimensions:	9.7 in H x 10.7 in W x 11.843 in D
Enclosure Type:	NEMA 4X/IP66/IP67/IP69/IK10
Fixture Wattage:	24 W
Housing Finish:	Gray
Housing Material:	Copper Free Aluminum
Lamp Type:	LED
Lens Type:	Polycarbonate Diffuser
Light Color:	Neutral White
Lumens:	3001 to 4000 Lumens
Mounting Type:	Swivel Bracket
Voltage Rating:	100 to 277 VAC/120 to 250 VDC
