ALRB002TBC ACM

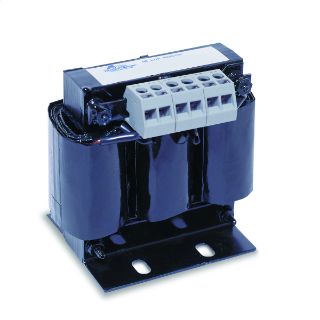

Picture of ALRB002TBC ACM
Actual Product May Vary From Image

Product Details

Manufacturer:
Acme Electric
Manufacturer part number:
ALRB002TBC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Acme Electric®

Type

3-Phase

Description

Acme™s three-phase AC Line Reactors can be used as an input filter for adjustable speed DC drives and as input or output filters for AC pulse width modulated variable frequency drives. They are bi-directional protective filtering devices and can be applied in a variety of configurations.
Acme Electric® Line Reactor, 3-Phase, Series: ALR, 240/480/600 VAC, 2 A, 1 hp, 60 Hz, NEMA 3R, 6/3/2.4 % Impedance, 11.027 mH, Air Cooling, Panel Mount, Copper, 4-1/4 in W x 3-1/8 in D x 3-7/8 in H

Application

Process Lines, Paper Machines, Casters, Tube Mills, Tire Assembly, Laminators, Press Controls and Drive Systems

Standards

cUL Listed | CE Certified | UR and cUR Recognized | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

  • 2.1 in D x 1.44 in W Mounting
  • Gapped iron core inductor-designed for optimum performance while providing harmonics compensation
  • Precision wound copper coils-maximum protection from short-circuiting
  • Finger-safe terminal blocks
  • Compact design allows for more flexible installation
  • Designed to protect DC motor drives, AC variable frequency drives and the motors they power
  • AC line reactors allow Acme to augment the drive isolation transformer package to offer both line and load power quality protection for a wide range of applications
  • Our product line features flexible design and ease of installation for use in a variety of applications such as paper machines, process lines, press controls and drive systems, along with tube mills and other sophisticated process equipment
  • Reduction of motor current surges and power line spike currents
  • Improvement in true power factor of capacitor input drives
  • Cooler, quieter operation
  • Reduction of harmonic distortion
  • Longer life for motors and solid state components
  • Use to protect damaging from voltage drop, elimination of nuisance tripping of drives or circuit breakers
  • Open - core and coil construction
  • Maximum temperature rise of 115 deg C
  • 2.4% at 600 VAC, 6% at 240 VAC Impedance

Specifications

Amperage Rating:2 A
Cooling Type:Air
Country of Origin:MX
Dimensions:4-1/4 in W x 3-1/8 in D x 3-7/8 in H
Enclosure Type:NEMA 3R
Frequency Range:60 Hz
Impedance:6/3/2.4 %
Inductance:11.027 mH
Material:Copper
Mounting Type:Panel
Power Rating:1 hp
Series:ALR
Voltage Rating:240/480/600 VAC
