ALRC045TBC ACM

Name: ALRC045TBC ACM
Brand: Acme Electric
SKU: ALRC045TBC ACM
Availability: OutOfStock

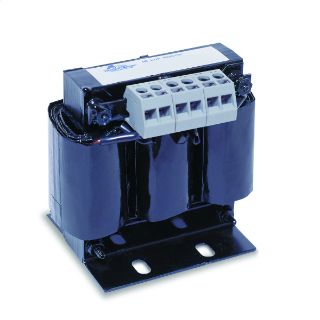

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

ALRC045TBC

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Type

3-Phase

Description

Acme Electric® Line Reactor, 3-Phase, Series: ALR, 240/480/600 VAC, 45 A, 30 hp, 60 Hz, 10/5/4 % Impedance, 817 uH, 115 deg C, 9 in W x 4-3/4 in D x 7 in H

Standards

UL 506 | CSA C22.2 No. 66 | CSA LR7357-16 | CE Certified | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

Can be used with 208/240/480/600 V
Gapped iron core with precision wound copper coils
Compact design allows for more flexible installation
Finger safe terminal block
Protects from damaging voltage drop
Eliminates nuisance tripping
Reduces surges and spike currents
Longer life for motors and solid state components
240 VAC at 10% Z, 480 VAC at 5% Z, 600 VAC at 4% Z
30 hp motor
40 A motor
45 A reactor current
180 deg C UL listed insulation class
3-gang in W x 3.6 in d mounting

Specifications

Amperage Rating:	45 A
Country of Origin:	MX
Dimensions:	9 in W x 4-3/4 in D x 7 in H
Frequency Range:	60 Hz
Impedance:	10/5/4 %
Inductance:	817 uH
Power Rating:	30 hp
Series:	ALR
Temperature Rating:	115 deg C
Voltage Rating:	240/480/600 VAC
