ALRC200CBC ACM

Name: ALRC200CBC ACM
Brand: Acme Electric
SKU: ALRC200CBC ACM
Availability: OutOfStock

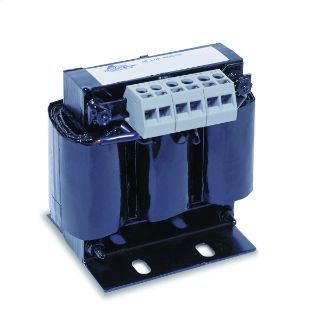

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

ALRC200CBC

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Description

Acme Electrics Line Reactors are designed to protect DC motor drives, AC variable frequency drives and the motors they power from harmful line disturbances, preventing equipment failure and downtime as well as adding years to the life of your sensitive equipment. AC Line Reactors allow Acme to augment the drive isolation transformer package to offer both line and load power quality protection for a wide range of applications. Our product line features flexible design and ease of installation for use in a variety of applications such as paper machines, process lines, press controls and drive systems, along with tube mills and other sophisticated process equipment.

Acme Electric® AC Line Reactor, Series: ALR, 240/480/600 VAC, 200 A, 150 hp, 3 ph, 184 uH, 8-1/2 in Height, 10.8 in Width, 8.2 in Depth, Through Hole Mount, Iron

Application

For use in a variety of applications such as paper machines, process lines, press controls and drive systems, along with tube mills and other sophisticated process equipment

Standards

CSA C22.2 File No. 62 | PROP65: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information www.P65Warnings.ca.gov. | UL 506

Features

Gapped iron core inductor designed for optimum performance while providing harmonics compensation
Precision wound copper coils for maximum protection from short-circuiting
Compact design allows for more flexible installation
Finger-safe terminal blocks
Protect your motors and motor drives from a variety of power conditioning problems
Provides protection from damaging voltage drop
Eliminates nuisance tripping of drives or circuit breakers
Reduces motor current surges and power line spike currents
Improves true power factor of capacitor input drives
Allows for cooler and quieter operation
Reduces harmonic distortion
Increases life for motors and solid state components

Specifications

Amperage Rating:	200 A
Country of Origin:	MX
Depth:	8.2 in
Height:	8-1/2 in
Horsepower:	150 hp
Inductance:	184 uH
Material:	Iron
Mounting Type:	Through Hole
Phase:	3 ph
Series:	ALR
Voltage Rating:	240/480/600 VAC
Width:	10.8 in
