ALU7AC29DSNNGN DLG

Name: ALU7AC29DSNNGN DLG
Brand: Dialight Corporation
SKU: ALU7AC29DSNNGN DLG
Availability: OutOfStock

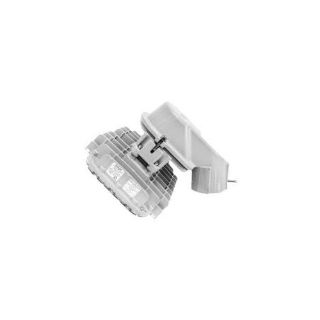

Actual Product May Vary From Image

Product Details

Manufacturer:

Dialight Corporation

Manufacturer part number:

ALU7AC29DSNNGN

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Vigilant®

Type

180 deg Beam

Description

Combining precision optics with ultra high efficiency output, the Vigilant® area light delivers maximum lighting efficacy and at least 50% reduction in energy use and cost compared to traditional HID and high pressure sodium sources. Vigilant® high durability, corrosion resistant housing, improved color rendering LEDs and unique AC/DC power supply are all backed by Dialight 10 years warranty.

Vigilant® Area Light, 180 deg Beam, 100 to 277 VAC/120 to 250 VDC, 66 W Fixture, LED Lamp, >300000 hr Average Life, Cool White Light, 5000 K Color, 80 CRI, Clear Tempered Glass Lens, 8001 to 9000 Lumens, NEMA 4X/IP66/IP67/IP69/IK07, 45 deg Stanchion Mount, Copper Free Aluminum Housing, Gray Housing, 12.6 in H x 10.7 in W x 8.4 in D

Application

Industrial, Indoor and Outdoor Applications

Standards

UL 1598A | CSA 22.2 No. 250 | FCC Title 47 Subpart B Section 15 Class A | IEC 61000-3-2 | Class C

Features

Ideal for 10 in to greater than 20 in mounting heights

Specifications

Average Life:	>300000 hr
Color Rendering Index (CRI):	80
Color Temperature:	5000 K
Country of Origin:	MX
Dimensions:	12.6 in H x 10.7 in W x 8.4 in D
Enclosure Type:	NEMA 4X/IP66/IP67/IP69/IK07
Fixture Wattage:	66 W
Housing Finish:	Gray
Housing Material:	Copper Free Aluminum
Lamp Type:	LED
Lens Type:	Clear Tempered Glass
Light Color:	Cool White
Lumens:	8001 to 9000 Lumens
Mounting Type:	45 deg Stanchion
Voltage Rating:	100 to 277 VAC/120 to 250 VDC
