AMAFS6207F RND

Name: AMAFS6207F RND
Brand: Rexnord
SKU: AMAFS6207F RND
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

AMAFS6207F

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rex®

Type

Floating Heavy Duty

Description

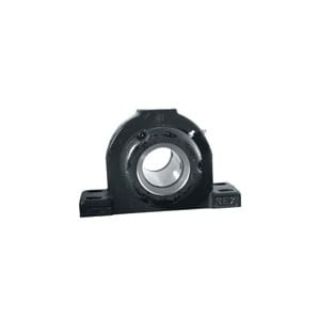

Rex® Pillow Block Spherical Roller Bearing, Floating Heavy Duty, Series: 6000, 2-7/16 in Bore, 8-5/8 to 9-5/8 in Bolt Center-to-Center Length, 3-1/4 in Base to Bore Centerline, 11-1/8 in Overall Length, 4-1/16 in Overall Width, 7 in Overall Height, Four-Bolt Base Mounting, 3-1/8 in Base Width, Shurlok® Adapter Mount Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 43240 lb Dynamic/53500 lb Static Load, 225 deg F, 2000 rpm Maximum, Cast Iron

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Spyglass Optical Strain Sensor (OSS) technology
Full bore contact for maximum shaft holding power, concentricity and running accuracy
Accommodates undersized shafting
Easily removable
Two open auxiliary end caps
SAF interchange

Specifications

Base to Bore Centerline:	3-1/4 in
Base Width:	3-1/8 in
Bolt Center-to-Center Length:	8-5/8 to 9-5/8 in
Bore Diameter:	2-7/16 in
Country of Origin:	US
Expansion Type:	Expansion
Load Capacity:	43240 lb Dynamic/53500 lb Static
Locking Device:	Shurlok® Adapter Mount
Material:	Cast Iron
Maximum Speed:	2000 rpm
Mounting Type:	Four-Bolt Base
Overall Height:	7 in
Overall Length:	11-1/8 in
Overall Width:	4-1/16 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	6000
Temperature Rating:	225 deg F
