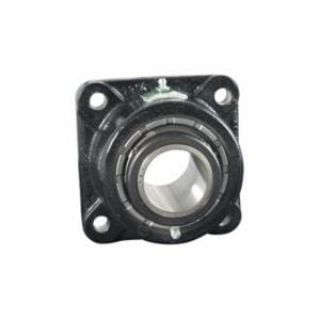

AMB2308 RND

Rex® Bearings represent the continuation of 80 years of bearing technology and experience. This design allows the inner race to misalign freely in any direction up to 4 deg of total misalignment. By design, Rex® Bearings accept both radial and thrust loads under static, oscillatory or dynamic conditions. The load is taken on the roller raceways, not the roller ends. This means that when thrust is loaded up to their allowable limit, Rex® Bearings do not exhibit roller end wear.

Rex® Flanged Block Spherical Roller Bearing, Fixed Normal Duty, Series: 2000, 3-1/2 in Bore, 6-23/32 in Bolt Center-to-Center Length, 4-3/4 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8-7/16 in Overall Length/Diameter, 4-3/8 in Overall Depth, 8-7/16 in Overall Height, Single Set Screw Collar Locking Device, Cast Iron Bearing, Elastomer Seal, 84330 lb Dynamic/90700 lb Static Load, 1400 rpm Maximum, Powder Coated
