AMEP2207F RND

Rex® roller bearings are available in shaft sizes from 3/4 in through 7 in. Design improvements have increased load ratings and speed limits, combined with internal bearing design improvements. These features provide lower noise levels and are key performance factors that provide long bearing life. Rex® roller bearings allow for +/- 2 deg of dynamic misalignment to accommodate installation in accuracies or shaft deflection. A unique feature of Rex® bearing seals is that they are field replaceable and field upgradeable. Rex® roller bearings are available with a variety of seal choices, housing styles and shaft attachments to meet various application requirements.

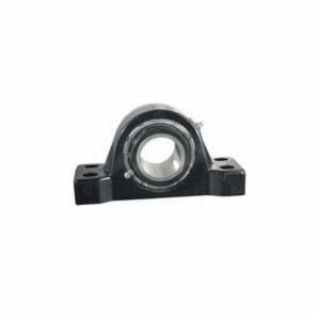

Rex® Pillow Block Spherical Roller Bearing Unit, Normal Duty Solid Housed Type E, Series: 2000, 2-7/16 in Bore, 6-15/16 to 8-3/4 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 10-1/2 in Overall Length, 3-1/2 in Overall Width, 5-1/2 in Overall Height, Four-Bolt Base Mounting, 3-5/8 in Base Width, Single Set Screw Collar Locking Device, Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 43240 lb Dynamic/53500 lb Static Load, 2000 rpm Maximum, Cast Iron, Powder Coated
