AMP9208 RND

Name: AMP9208 RND
Brand: Rexnord
SKU: AMP9208 RND
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

AMP9208

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rex®

Type

Extra Heavy Duty

Description

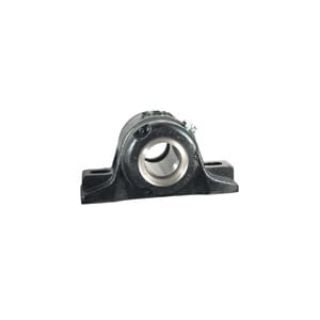

Rex® Pillow Block Spherical Roller Bearing, Extra Heavy Duty, Series: 9000, 2-1/2 in Bore, 9-3/4 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 13 in Overall Length, 3-3/4 in Overall Width, 6-23/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-7/8 in Base Width, Adapter Mounted Locking Device, Spring-Loaded/Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 57750 lb Dynamic/71500 lb Static Load, 225 deg F, 1700 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Full bore contact for maximum shaft holding power, concentricity and running accuracy
Accommodates undersized shafting
Two open auxiliary end caps

Specifications

Base to Bore Centerline:	3-1/2 in
Base Width:	3-7/8 in
Bolt Center-to-Center Length:	9-3/4 in
Bore Diameter:	2-1/2 in
Bore Type:	Round
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	57750 lb Dynamic/71500 lb Static
Locking Device:	Adapter Mounted
Material:	Cast Iron
Maximum Speed:	1700 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	6-23/32 in
Overall Length:	13 in
Overall Width:	3-3/4 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	9000
Temperature Rating:	225 deg F
