AMPS2115 RND

Name: AMPS2115 RND
Brand: Rexnord
SKU: AMPS2115 RND
Availability: OutOfStock

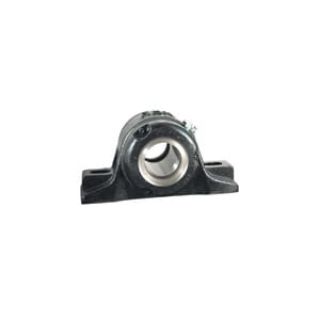

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

AMPS2115

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rex®

Type

Floating Normal Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Floating Normal Duty, Series: 2000, 1-15/16 in Bore, 7 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 9-3/4 in Overall Length, 5-3/4 in Overall Width, 4-15/16 in Overall Height, Two-Bolt Base Mounting, 2-7/8 in Base Width, Single Set Screw Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 28890 lb Dynamic/33200 lb Static Load, 225 deg F, 2500 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Simplest installation
Most economical
Two open auxiliary end caps

Specifications

Base to Bore Centerline:	2-1/2 in
Base Width:	2-7/8 in
Bolt Center-to-Center Length:	7 in
Bore Diameter:	1-15/16 in
Country of Origin:	US
Expansion Type:	Expansion
Finish:	Powder Coated
Load Capacity:	28890 lb Dynamic/33200 lb Static
Locking Device:	Single Set Screw Collar
Material:	Cast Iron
Maximum Speed:	2500 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	4-15/16 in
Overall Length:	9-3/4 in
Overall Width:	5-3/4 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	2000
Temperature Rating:	225 deg F
