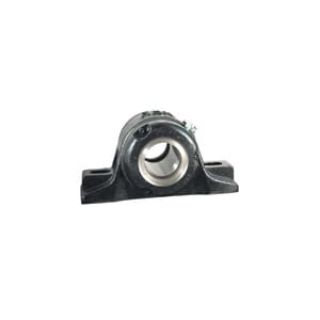

AMPS5515F RND

Name: AMPS5515F RND
Brand: Rexnord
SKU: AMPS5515F RND
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

AMPS5515F

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rex®

Type

Floating Heavy Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Floating Heavy Duty, Series: 5000, 5-15/16 in Bore, 20-1/2 in Bolt Center-to-Center Length, 7-1/16 in Base to Bore Centerline, 24-3/4 in Overall Length, 11-1/16 in Overall Width, 15-3/32 in Overall Height, Four-Bolt Base Mounting, Round Bore, 6-3/4 in Base Width, Double Set Screw Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 248200 lb Dynamic/304600 lb Static Load, 225 deg F, 800 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Increased shaft holding power and stability
Moderate cost
Two open auxiliary end caps

Specifications

Base to Bore Centerline:	7-1/16 in
Base Width:	6-3/4 in
Bolt Center-to-Center Length:	20-1/2 in
Bore Diameter:	5-15/16 in
Bore Type:	Round
Country of Origin:	US
Expansion Type:	Expansion
Finish:	Powder Coated
Load Capacity:	248200 lb Dynamic/304600 lb Static
Locking Device:	Double Set Screw Collar
Material:	Cast Iron
Maximum Speed:	800 rpm
Mounting Type:	Four-Bolt Base
Overall Height:	15-3/32 in
Overall Length:	24-3/4 in
Overall Width:	11-1/16 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	5000
Temperature Rating:	225 deg F
