AMPS9415F RND

Name: AMPS9415F RND
Brand: Rexnord
SKU: AMPS9415F RND
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

AMPS9415F

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rex®

Type

Floating Extra Heavy Duty

Description

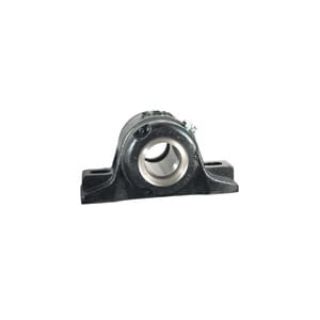

Rex® Pillow Block Spherical Roller Bearing, Floating Extra Heavy Duty, Series: 9000, 4-15/16 in Bore, 18-5/16 in Bolt Center-to-Center Length, 6-11/16 in Base to Bore Centerline, 22 in Overall Length, 7-1/16 in Overall Width, 14-3/8 in Overall Height, Four-Bolt Base Mounting, 6-1/4 in Base Width, Adapter Mounted Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 229620 lb Dynamic/274100 lb Static Load, 225 deg F, 900 rpm Maximum, Cast Iron

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Full bore contact for maximum shaft holding power, concentricity and running accuracy
Accommodates undersized shafting
Two open auxiliary end caps

Specifications

Base to Bore Centerline:	6-11/16 in
Base Width:	6-1/4 in
Bolt Center-to-Center Length:	18-5/16 in
Bore Diameter:	4-15/16 in
Country of Origin:	US
Expansion Type:	Expansion
Load Capacity:	229620 lb Dynamic/274100 lb Static
Locking Device:	Adapter Mounted
Material:	Cast Iron
Maximum Speed:	900 rpm
Mounting Type:	Four-Bolt Base
Overall Height:	14-3/8 in
Overall Length:	22 in
Overall Width:	7-1/16 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	9000
Temperature Rating:	225 deg F
