AMPS9515F RND

Name: AMPS9515F RND
Brand: Rexnord
SKU: AMPS9515F RND
Availability: OutOfStock

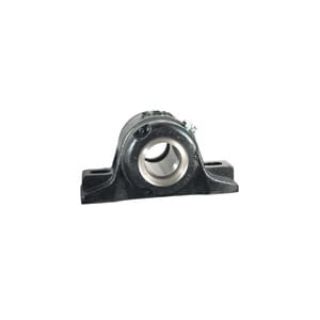

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

AMPS9515F

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rex®

Type

Floating Extra Heavy Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Floating Extra Heavy Duty, Series: 9000, 5-15/16 in Bore, 23 in Bolt Center-to-Center Length, 7-7/8 in Base to Bore Centerline, 28 in Overall Length, 7-3/4 in Overall Width, 16-3/4 in Overall Height, Four-Bolt Base Mounting, 7-1/2 in Base Width, Adapter Mounted Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 309860 lb Dynamic/395500 lb Static Load, 225 deg F, 700 rpm Maximum, Cast Iron

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Full bore contact for maximum shaft holding power, concentricity and running accuracy
Accommodates undersized shafting
Two open auxiliary end caps

Specifications

Base to Bore Centerline:	7-7/8 in
Base Width:	7-1/2 in
Bolt Center-to-Center Length:	23 in
Bore Diameter:	5-15/16 in
Country of Origin:	US
Expansion Type:	Expansion
Load Capacity:	309860 lb Dynamic/395500 lb Static
Locking Device:	Adapter Mounted
Material:	Cast Iron
Maximum Speed:	700 rpm
Mounting Type:	Four-Bolt Base
Overall Height:	16-3/4 in
Overall Length:	28 in
Overall Width:	7-3/4 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	9000
Temperature Rating:	225 deg F
