AN-X2-AB-DHRIO PRS

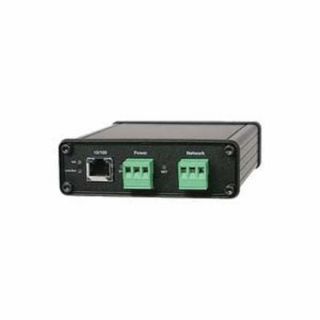

Picture of AN-X2-AB-DHRIO PRS
Actual Product May Vary From Image

Product Details

Manufacturer:
Prosoft Technology
Manufacturer part number:
AN-X2-AB-DHRIO
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

ProSoft Technology

Description

The AN-X2-AB-DHRIO Gateway is designed to help customers initiate a phased migration approach to replacing or upgrading legacy Remote I/O PLCs, HMI's, Drives or Flex I/O Adapters. These solutions can be achieved by selecting the corresponding operation mode during initial configuration. The AN-X2-AB-DHRIO has a built-in web server that can display diagnostics data, configuration, upload configuration files, and set the operation mode.
ProSoft Technology Gateway, Ethernet/IP Protocol, RJ45 10/100 Mbps Ethernet/Phoenix 3-Pin Power Connector/Phoenix 3-Pin Network Connector Port, 3 Ports, 4.18 x 4.97 x 1.33 in, Environmental Conditions: 32 to 122 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity

Features

  • EtherNet/IP™ to Allen Bradley remote I/O or DH+
  • Remote I/O scanner - allows users to replace their existing remote I/O PLC with a ControlLogix™ or CompactLogix PAC without having to replace existing racks of I/O
  • Drive - supports upgrading legacy Allen Bradley drives on remote I/O to new EtherNet/IP enabled drives
  • HMI - allows legacy PanelViews on remote I/O or DH+ to be upgraded to a PanelView Plus, PanelView plus 6 or PanelView plus 7 on EtherNet/IP
  • DH+ - acts as a bridge between an EtherNet/IP and a data Highway plus network
  • Flex I/O scanner - allows PLC's on remote I/O to connect to and control 1794-AENT EtherNet/IP flex adapters
  • 200 mA at 12 vdc or 100 mA at 24 vdc typical power consumption
  • 2.4 W maximum power dissipation
  • DIN-rail mountable
  • -40 to 185 deg F storage temperature

Specifications

Dimensions:4.18 x 4.97 x 1.33 in
Environmental Conditions:32 to 122 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity
Number of Ports:3
Port Type:RJ45 10/100 Mbps Ethernet/Phoenix 3-Pin Power Connector/Phoenix 3-Pin Network Connector
Protocol:Ethernet/IP
