AN30-N03 SMC

Name: AN30-N03 SMC
Brand: SMC
SKU: AN30-N03 SMC
Price: 4.75 USD
Availability: InStock

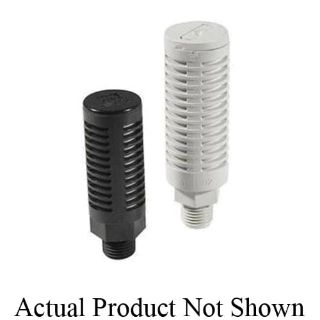

SMC® AN30-N03 Pneumatic Silencer, 3/8 in Port, 1.0 mpa Pressure Rating, 41 to 140 deg F

Manufacturer: SMC

Manufacturer part number: AN30-N03

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
8	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4.75

Qty:

Product Details

Brand Name

SMC®

Description

Series an silencers offer various styles and low backpressure in a compact, easy mounting design. The noise reduction has been improved to 30 dB(A) and the case is UL94-V0 grade, flame resistant material. Series an is available with M, R or NPT threads.

SMC® Pneumatic Silencer, Series: AN, 3/8 in, 1.0 mpa, 41 to 140 deg F, Resin

Standards

RoHS Compliant

Features

Compact type
Over 25 dB (A) noise reduction space-saving compact type
NPT thread
0 to 1 MPa maximum operating pressure
Compressed air fluid
3/8 port
It can operate in temperature between -10 to 60 deg C if there is no risk of the moisture in the air freezing
58.5 mm silencer length

Specifications

Material:	Resin
Port Size:	3/8 in
Pressure Rating:	1.0 mpa
Series:	AN
Temperature Rating:	41 to 140 deg F
