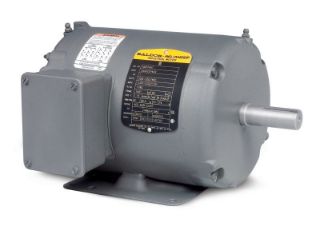

Picture of AOM3546T BLD
Actual Product May Vary From Image

AOM3546T BLD

1HP,1725RPM,3PH,60HZ,143T,3428M,TEAO,F1
Manufacturer: Baldor Reliance
Manufacturer part number: AOM3546T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$625.82

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1HP,1725RPM,3PH,60HZ,143T,3428M,TEAO,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:143
Frequency Rating:60 Hz
Full Load Current:1.8 A; 3.6 A; 3.8 A
Horsepower:1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:75.50%
Phase:Three Phase
Power Factor:64
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,725 rpm
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty
