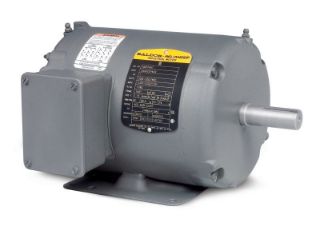

Picture of AOM3554T BLD
Actual Product May Vary From Image

AOM3554T BLD

1.5 AIR OVERHP,1735RPM,3PH,60HZ,145T,352
Manufacturer: Baldor Reliance
Manufacturer part number: AOM3554T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$651.16

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1.5 AIR OVERHP,1735RPM,3PH,60HZ,145T,352

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEAO
Frame:145
Frequency Rating:60 Hz
Full Load Current:4.6 A; 2.3 A; 5.0 A
Horsepower:1.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:81.50%
Phase:Three Phase
Power Factor:74
Rotation:Reversible
Service Factor:1
Speed Rating:1,735 rpm
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty
