AOM3611T BLD

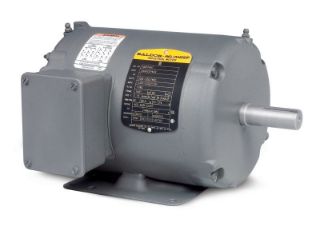

Picture of AOM3611T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
AOM3611T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$897.62 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

3 AIR OVERHP,1750RPM,3PH,60HZ,182T,3622M

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEAO
Frame:182
Frequency Rating:60 Hz
Full Load Current:9.0 A; 4.5 A
Horsepower:3.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:85.50%
Phase:Three Phase
Power Factor:72
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Voltage Rating:230 V; 208 V; 460 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEAO
Frame
182T
Frequency Rating
60 Hz
Horsepower
3 HP
Speed Rating
1800 RPM
Type
HVAC Motor
Voltage Rating
208-230/460
