AOM3704T BLD

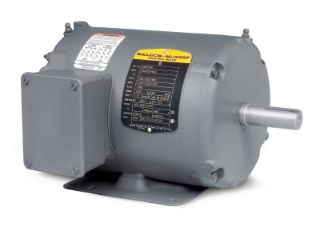

Picture of AOM3704T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
AOM3704T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,348.98 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

3 AIR OVERHP,1155RPM,3PH,60HZ,213T,3720M

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:213
Frequency Rating:60 Hz
Full Load Current:4.8 A; 10.4 A; 9.6 A
Horsepower:3.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:84.00%
Phase:Three Phase
Power Factor:7
Rotation:Reversible
Service Factor:1
Speed Rating:1,155 rpm
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TENV
Frame
213T
Frequency Rating
60 Hz
Horsepower
3 HP
Speed Rating
1200 RPM
Type
HVAC Motor
Voltage Rating
208-230/460
