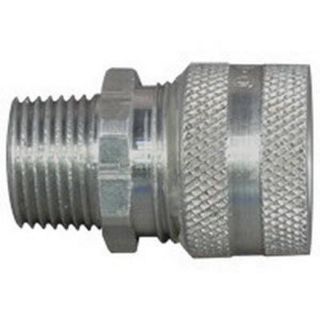

Actual Product May Vary From Image

APPCG3150 APN

Name: APPCG3150 APN
Brand: Appleton
SKU: APPCG3150 APN
Price: 10.64 USD
Availability: InStock

Appleton® APPCG3150 Liquidtight Straight Strain Relief Connector, 1/2 in Trade, 0.312 to 0.437 in Cable Openings, Aluminum

Manufacturer: Appleton

Manufacturer part number: APPCG3150

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
14	18	172
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.64

Qty:

Product Details

Brand Name

Appleton®

Type

Liquidtight

Description

Appleton® Straight Strain Relief Connector, Liquidtight, 1/2 in Trade, 0.312 to 0.437 in Cable Openings, Threaded Hub, Aluminum, Yellow, 0.9375 in Dia x 0.94 in H

Application

For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable

Standards

NEMA 3R, Class I, Division 2, Class II, Division 1, 2 Class III | UL 514B, E14817 | CSA C22.2 No. 18.3, 065178

Features

For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture
Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
Copper free aluminum cap, neoprene sealing grommet
Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap

Specifications

Cable Openings:	0.312 to 0.437 in
Color:	Yellow
Connection Type:	Threaded Hub
Country of Origin:	US
Dimensions:	0.9375 in Dia x 0.94 in H
Material:	Aluminum
Trade Size:	1/2 in
