APPFR16C18M1 APN

Name: APPFR16C18M1 APN
Brand: Appleton
SKU: APPFR16C18M1 APN
Availability: OutOfStock

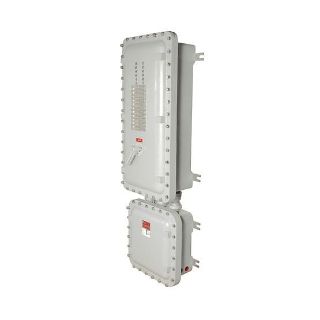

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

APPFR16C18M1

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Explosionproof Factory Sealed Main Breaker

Description

Appleton® explosionproof, dust-ignitionproof, watertight, APPF Series power distribution panelboards are used to provide protection and control of electrical equipment in hazardous locations. These factory sealed panelboards are designed to centrally control switching systems for multiple branch circuits that are used for lighting, heat trace, small motors and other electrical equipment. ALPF and APPF Series panelboards are suitable for use in damp, wet, corrosive and hazardous locations, including chemical and petrochemical plants, petroleum refineries, other process facilities and industrial applications.

Appleton® Power Distribution Panelboard, Explosionproof Factory Sealed Main Breaker, Series: APPF, 600 VAC, 100 A, 1 Pole, 10 kA Interrupt, 18 Circuits, FDB Breaker, Copper Plated Bus, NEMA 4/4X/7B/7C/7D/9E/9F/9G Enclosure, Copper Free Aluminum Housing Material, 78.88 in H x 23 in W x 10.5 in D Dimensions, Gray

Application

For lighting, heating, small motors, similar electrical equipment and hazardous locations

Standards

UL 1203/E84577 | UL Listed for Class I, Div 1 and 2, Groups B, C, D | Class II, Div 1 and 2, Groups E, F, G Class III, Class I, Zone 1, Group IIB +H2

Features

Breaker operators included as standard
O-ring gasket insures watertight integrity
Factory sealed, no external seals are required for most branch circuits
Breakers are housed in the panel section and prewired to maximum circuit capacity, then wired to numbered terminals in the wiring compartment
Terminal compartment is interconnected to panel section with sealing hubs, unions and poured with sealing compound
Precision machined flame path between body and cover
Bolt on stainless steel slotted mounting feet
Breaker operators can be padlocked in the on or off position
Chassis assembles with mains at top (bottom optional)
Up to 100 A back fed main breaker available with main lug chassis
Up to 225 A main breaker available with main breaker chassis
Factory installed ground and neutral bar as standard
Quad-Lead® stainless steel cover bolts, hinges are standard
Neoprene O-ring
Dust-ignitionproof

Specifications

Amperage Rating:	100 A
Breaker Type:	FDB
Bus Material:	Copper Plated
Color:	Gray
Country of Origin:	US
Dimensions:	78.88 in H x 23 in W x 10.5 in D
Enclosure Type:	NEMA 4/4X/7B/7C/7D/9E/9F/9G
Housing Material:	Copper Free Aluminum
Interrupt Rating:	10 kA
Number of Circuits:	18
Number of Poles:	1
Series:	APPF
Voltage Rating:	600 VAC
