Actual Product May Vary From Image

APPFS150 APN

Name: APPFS150 APN
Brand: Appleton
SKU: APPFS150 APN
Price: 33.49 USD
Availability: OutOfStock

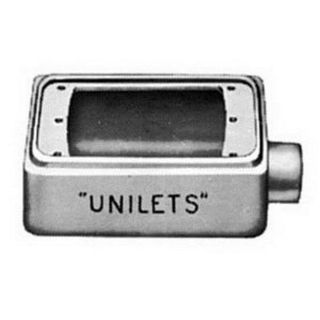

Appleton® UNILETS™ FS150 Type FS Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4.56 in H x 2.81 in W x 2 in D

Manufacturer: Appleton

Manufacturer part number: FS150

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$33.49

Qty:

Product Details

Brand Name

Appleton®

Type

Type FS Heavy Duty Shallow

Alternate Supplier #

Grainger - 10L104

Description

Appleton® UNILETS™ Device Box, Type FS Heavy Duty Shallow, 1 Outlets, 1 Gangs, 1 Knockouts, 1/2 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in H x 2.81 in W x 2 in D

Application

For use with threaded rigid/IMC conduit

Standards

ARRA Compliant | UL 514A File No. E2527 | CSA C22.2 No. 18.1/001472 | NEMA FB-1

Features

Corrosion-resistant ideal for indoor and outdoor installations
Weatherproof, raintight and dust tight when used with cast gasketed covers
FS and FD boxes take standard flush wiring devices
FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
Accurately tapped, tapered threads for tight, rigid joints and ground continuity
Complete selection of covers, receptacles, plugs, gaskets and accessories
Covers have captive stainless steel screws to speed installation, prevents loss of screws
Smooth, rounded integral bushing in each hub protects conductor insulation
Accommodate wiring devices such as switches and receptacles
Provide excellent service in areas where boxes are subject to rough usage
Serve as pull boxes for conductors
Permit access to conductors for maintenance
Provide openings for making splices
Allow connections for branch conduit runs
Blank bodies for special conduit entrance arrangements
Without knockouts

Includes

Mounting Lugs

Specifications

Cable Entry Size:	Knockout
Capacity:	25 cu-in
Country of Origin:	MX
Dimensions:	4.56 in H x 2.81 in W x 2 in D
Enclosure Type:	NEMA FB-1
Finish:	Tri-Coated
Hub Size:	1/2 in
Hub Style:	Tapered Threaded
Material:	Malleable Iron
Number of Gangs:	1
Number of Knockouts:	1
Number of Outlets:	1
