APPLB300A APN

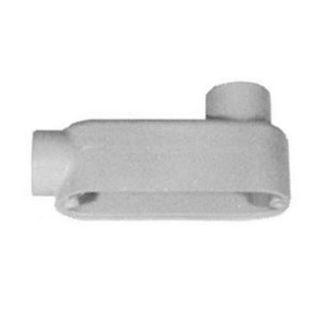

Picture of APPLB300A APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
LB300-A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$334.12 / EA

Description

Brand Name

Appleton®

Type

Type LB

Alternate Supplier #

Grainger - 10V952

Description

Appleton® Form 85™ UNILETS™ Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
Appleton® UNILETS™ Conduit Outlet Body, Type LB, 2 Hubs, 177 cu-in, 85, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Sand Cast Aluminum, Epoxy Powder Coated, 13.69 in L x 6 in H

Application

For Rigid Steel/Aluminum, IMC and EMT Conduit

Standards

UL 514A/514B/E2527 | C22.2 No. 18.3 | CSA 065183

Features

  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Roomy interiors more wiring space
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
  • Lightweight aluminum facilitates shipping, handling and installing
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Internal volume and maximum wire capacity clearly marked on castings
  • Threaded style is raintight when used with casketed covers

Specifications

Capacity:177 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:13.69 in L x 6 in H
Enclosure:NEMA FB-1
Finish:Epoxy Powder Coated
Form:85
Material:Sand Cast Aluminum
Mounting Type:Surface
Number of Hubs:2

Products Specifications

Brand Name
Appleton
Connection
Tapered Female Threaded
Form
85
Material
Aluminum
Size
3/4 in
Type
Conduit Outlet Body
