APPLB50A APN

Name: APPLB50A APN
Brand: Appleton
SKU: APPLB50A APN
Price: 14.77 USD
Availability: InStock

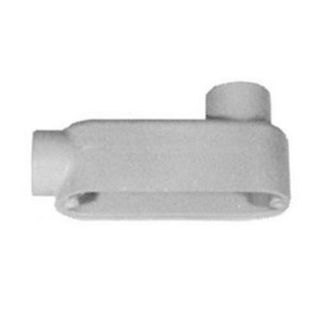

Appleton® UNILETS™ LB50-A Type LB Conduit Outlet Body, 1/2 in Hub, 85, 4 cu-in, Pressure Cast Aluminum, Epoxy Powder Coated

Manufacturer: Appleton

Manufacturer part number: LB50-A

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
37	7	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$14.77

Qty:

Product Details

Brand Name

Appleton®

Type

Type LB

Alternate Supplier #

Grainger - 10V965

Description

Appleton® Form 85™ UNILETS™ Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Appleton® UNILETS™ Conduit Outlet Body, Type LB, 1/2 in Hub, 2 Hubs, 4 cu-in, 85, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Pressure Cast Aluminum, Epoxy Powder Coated, 4.31 in L x 2.06 in H

Application

For Rigid Steel/Aluminum, IMC and EMT Conduit

Standards

UL 514A/514B/E2527 | CSA C22.2 No. 18.3/065183

Features

Smooth, rounded integral bushing in hubs protects conductor insulation
Roomy interiors more wiring space
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
Lightweight aluminum facilitates shipping, handling and installing
Sizes with flat back design ideal where fitting is mounted flat against surface
Internal volume and maximum wire capacity clearly marked on castings
Threaded style is raintight when used with casketed covers

Specifications

Capacity:	4 cu-in
Connection Type:	Tapered FNPT
Country of Origin:	IN
Dimensions:	4.31 in L x 2.06 in H
Enclosure:	NEMA FB-1
Finish:	Epoxy Powder Coated
Form:	85
Hub Size:	1/2 in
Material:	Pressure Cast Aluminum
Mounting Type:	Surface
Number of Hubs:	2
