ARC20034CD APN

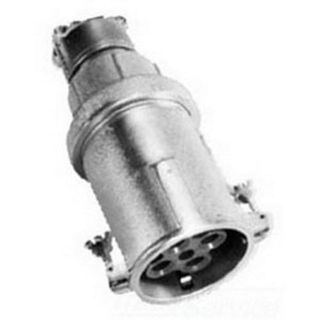

Name: ARC20034CD APN
Brand: Appleton
SKU: ARC20034CD APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

ARC20034CD

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

3-Phase Grounding Style 2 Weatherproof

Description

Powertite® Series Plugs, Connectors and Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, make first, break last grounding.

Appleton® Powertite® Pin and Sleeve Connector Body, 3-Phase Grounding Style 2 Weatherproof, Series: ARC, 600/250 VAC/VDC, 200 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 13 in L x 5-3/4 in W Dimensions

Application

AP20034CD and AP20034E Plugs, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore Applications and Rough Usage Construction

Standards

UL 1682 | UL 1686 | UL 50E | UL File No. E145916 | E145917 | CSA C22.2 File No. 182.1 | CSA File No. 065179

Features

Shell and extra pole grounding style 2
Designed to supply power to portable or fixed electrical equipment
Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
Natural finish glass filled polyester insulating blocks
0.687 in dia wire recess
Locking screw and slot prevents plug cable collar from "backing off"
Controlled length contacts ensure that ground makes first and breaks last for added safety
Contacts exert constant pressure along entire contact surface and provide electrical continuity
Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
Water resistant

Specifications

Amperage Rating:	200 A
Country of Origin:	MX
Dimensions:	13 in L x 5-3/4 in W
Frequency Rating:	50/400 Hz
Material:	Copper Free Aluminum
NEMA Rating:	NEMA 3/3R/4/4X
Number of Poles:	4
Number of Wires:	3
Series:	ARC
Temperature Rating:	-40 to 225 deg F
Terminal Type:	Pressure Wire
Voltage Rating:	600/250 VAC/VDC
